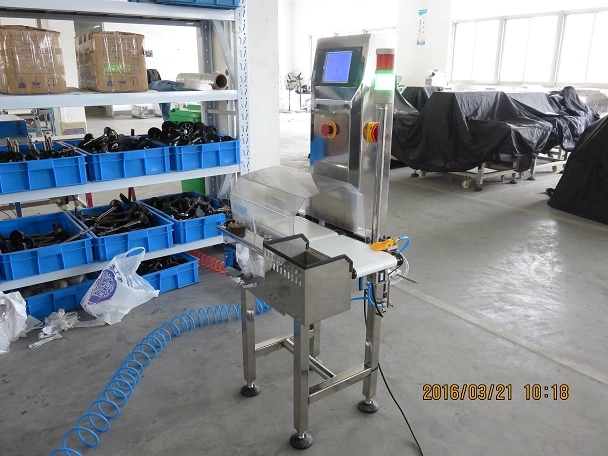

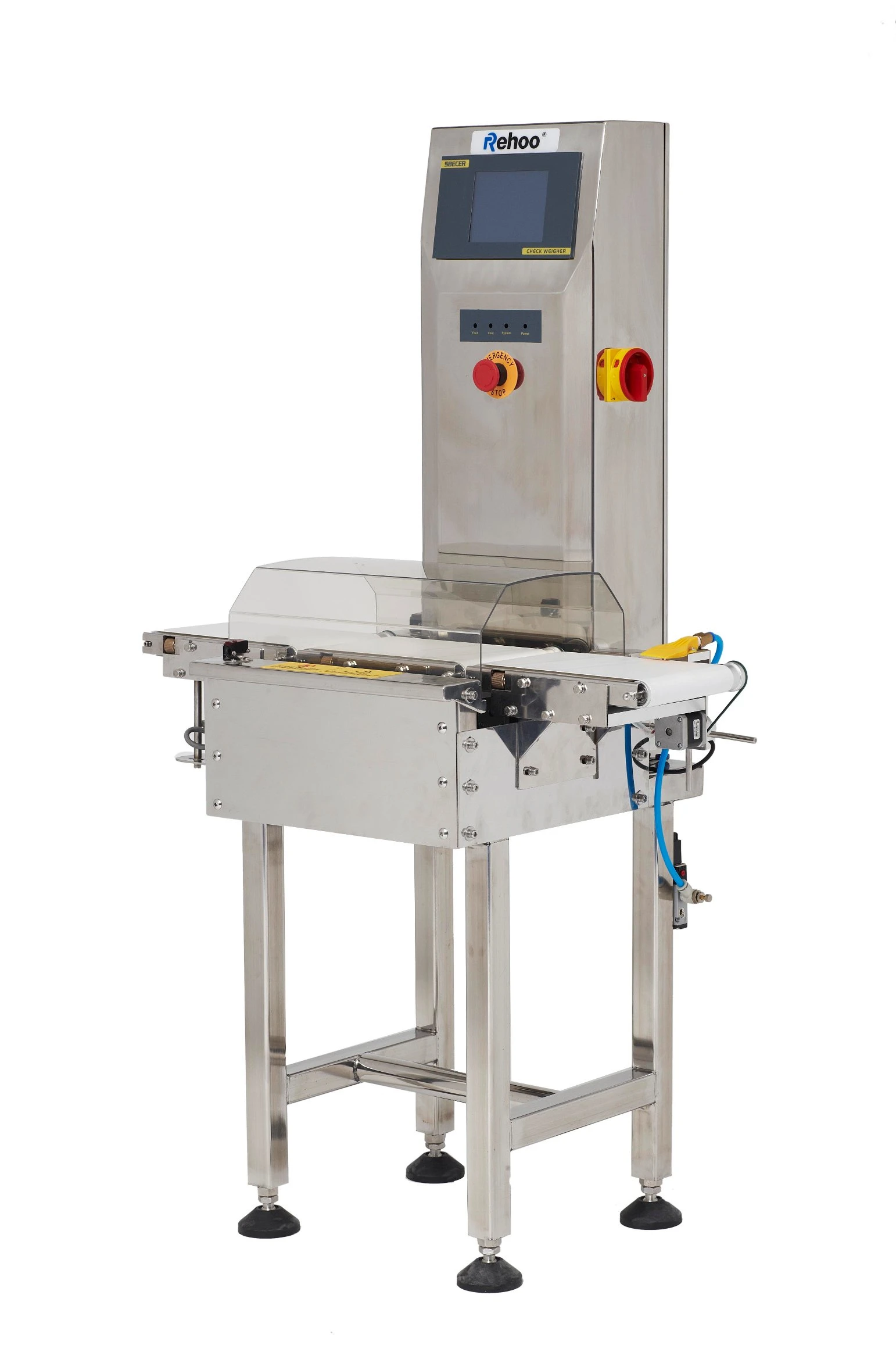

Conveyor Weight Checker (CWC-160HS)
Check Weigher
Model: CWC-160HS
Applied to automatic online package weighing and sorting
.Features
*Strong stainless steel structure; Water proof design.
*High accurate loadcell; Based on advanced DSP technology.
*Automatic weighing compensation and zero tracking.
*100 products preset; easy to edit and recall.
*Quickly product shift and speed recall.
*2000 sorting records; Printer output ready.
*Touch screen; friendly operation interface.
Specifications
Measurement:Strain Guage
Rejection:Air Jet/Pusher
Operation: Touch Screen
Alarm: Buzzzer & Lamp
Belt speed: Max.60m/min
Power Supply: AC110V/220V 50-60Hz
Rated Output: Appr.100W
Dimension:
850mm(L)*520mm(W)*1350±100mm(H)
Weight: Appr.60kg
Weighing Range:5-200g
Accuracy:±0.2g
Min scale:0.1g
sorting speed:Max.120bags/min.
